TENERE PERFORMA 3D60 - Liquid heat exchanger with fan 12V
The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

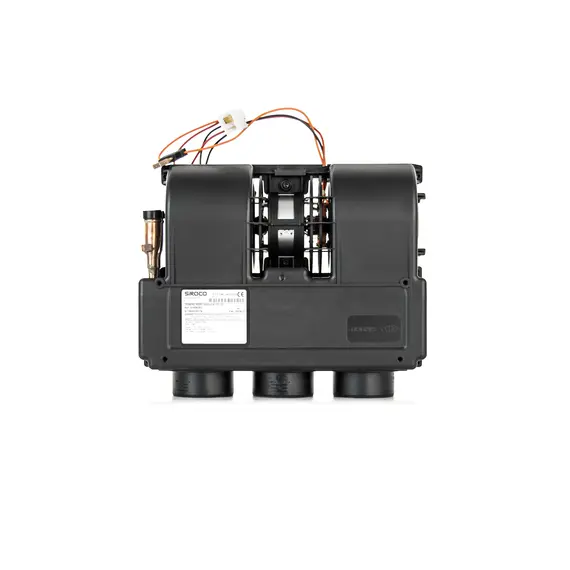

It is a heat exchanger that works as a radiator with an active fan & 3 x ø60 mm air sleeves for even hot air distribution up to 3 rooms. It is possible to use air flow adapters to distribute hot air flow to more rooms (depends on size & insulation of room).
As this liquid heat exchanger can run independently without AUTOTERM Flow series heater tuned on, it can be used to circulate air in the room.
The heat exchanger can be connected with 3 air pipes (assy.DE013) for even air distribution.
As an alternative, heat exchanger can be linked with engines coolant system instead of AUTOTERM Flow series heater.
Product information:
Voltage: 12V
Nominal air flow: 314 m3/h
This heat exchanger has a 2-speed fan
Heating capacity, Ethylene glycol: 6.05 kW

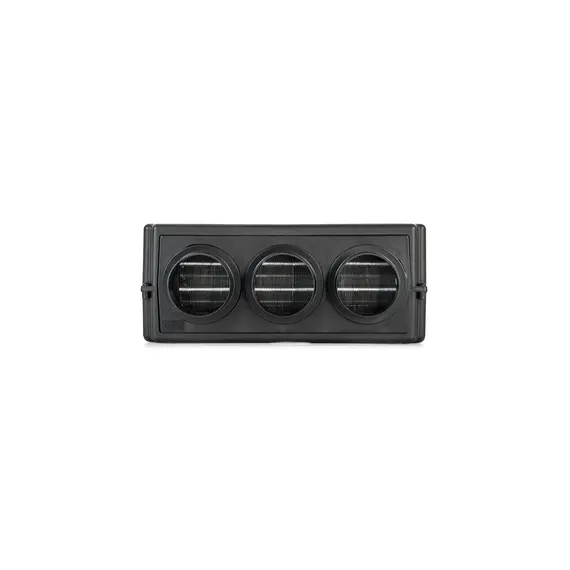

3 x ø60 mm air sleeves for even hot air distribution
Inlet & outlet for ethylene glycol: ø16 mm
Maximum allowable inner temperature °C: 100
Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88
For fan speed control optional 3 position rotary switch FR057 is required.
* 3-pin connector kit FR053 available separately - not included in kit
Liquid heat exchanger with the fan is suitable for all the following liquid heaters:
- AUTOTERM Flow 5 D / B
- AUTOTERM Flow 14D
Manufacturer: SIROCO
